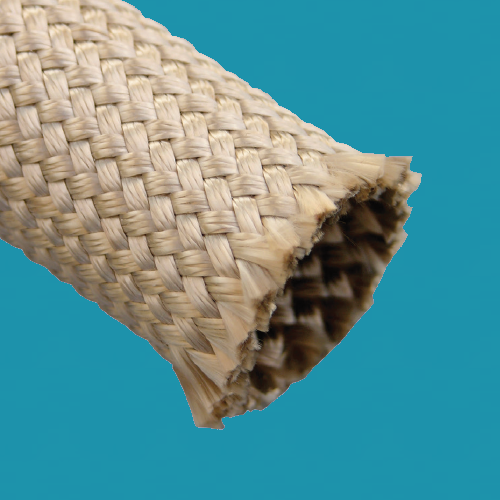

ThermoJacket® R sleeving is constructed of braided fiberglass. Use of an uncoated fiberglass grade results in slick, cloth-like surfaces both inside and outside of the sleeve attributing to the low friction factor of the product.
Bentley-Harris® ThermoJacket sleeving provides excellent long-term heat protection for hoses, wire harnesses and cables. ThermoJacket® is available in a variety of grades, offering industrial users the option of selecting combination of properties best suited to their specific application.
The product is capable of withstanding long term and continuous temperatures of up to 540°C and is recommended for applications requiring extreme flexibility.
Product Highlights
• Continuous long-term heat protection from -50°C to +540ºC (-58°F to +1,000ºF)
• Low friction
• Extremely flexible
• Attractive appearance
• RoHS Compliant
Product Specifications
|
Commercial Part Number |
Diameter Covered mm (in) |
Approximate Product Needed to Cover 100 ft m (ft) |
Standard Packaging m (ft) |
|
ThermoJacket R 4-9 |
6 (1/4”) |
31 (100) |
60 (200’) |
|
ThermoJacket R 6-9 |
10 (3/8”) |
31 (100) |
60 (200’) |
|
ThermoJacket R 8-9 |
13 (1/2”) |
31 (100) |
60 (200’) |
|
ThermoJacket R 8-9 |
16 (5/8”) |
31 (100) |
60 (200’) |
|
ThermoJacket R 12-9 |
19 (3/4”) |
31 (100) |
30 (100’) |
|
ThermoJacket R 14-9 |
22 (7/8”) |
31 (100) |
30 (100’) |
|
ThermoJacket R 16-9 |
25 (1”) |
31 (100) |
30 (100’) |
|
ThermoJacket R 20-9 |
32 (1-1/4”) |
31 (100) |
30 (100’) |
|
ThermoJacket R 22-9 |
35 (1-3/8”) |
31 (100) |
30 (100’) - box |
|
ThermoJacket R 22-9 |
38 (1-1/2”) |
32 (106) |
30 (100’) - box |
|
ThermoJacket R 22-9 |
44 (1-3/4”) |
34 (111) |
30 (100’) - box |
|
ThermoJacket R 22-9 |
51 (2”) |
36 (117) |
30 (100’) - box |
|
ThermoJacket R 22-9 |
57 (2-1/4”) |
39 (128) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
64 (2-1/2”) |
32 (104) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
70 (2-3/4”) |
33 (109) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
76 (3”) |
35 (116) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
83 (3-1/4”) |
36 (119) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
89 (3-1/2”) |
39 (128) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
95 (3-3/4”) |
42 (139) |
30 (100’) - box |
|
ThermoJacket R 44-9 |
102 (4”) |
46 (151) |
30 (100’) - box |
Availability
ThermoJacket R is available in sizes from 1/4” to 4” in diameter.
| FMC-THERMJAR-006-11 | ThermoJacket R-4 | 4022000601S |
| FMC-THERMJAR-010-11 | ThermoJacket R-6 | 4022001001S |
| FMC-THERMJAR-013-11 | ThermoJacket R-8 | 4022001301S |
| FMC-THERMJAS-016-11 | ThermoJacket R-10 | 4022001601S |
| FMC-THERMJAR-019-11 | ThermoJacket R-12 | 4022001901S |
| FMC-THERMJAR-022-11 | ThermoJacket R-14 | 4022002201S |
| FMC-THERMJAR-025-11 | ThermoJacket R-16 | 4022002501S |
| FMC-THERMJAR-032-11 | ThermoJacket R-20 | 4022003201S |
| FMC-THERMJAR-035-11 | ThermoJacket R-22 | 4022003501S |
| FMC-THERMJAR-064-11 | ThermoJacket R-44 | 4022006401S |
- Short Product Description:
- ThermoJacket R sleeving is constructed of braided fiberglass. The product is capable of withstanding long term and continuous temperatures of up to 540°C and is recommended for applications requiring extreme flexibility.
- Datasheet Link:
- /content/data_sheets/Thermojacket_R.pdf
