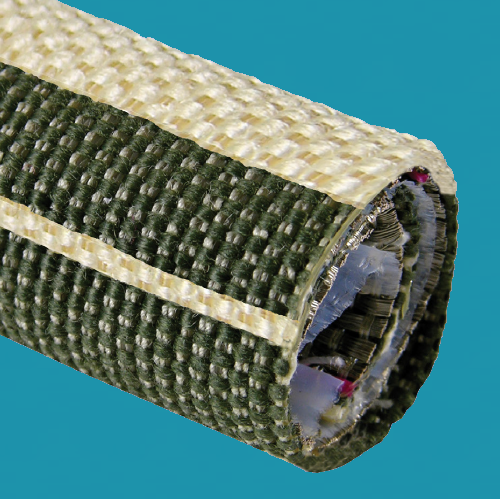

ROUNDIT® NP EMI is a self-wrapping sleeve designed for mechanical protection, resistance to electrical arcs and EMI shielding of wire and cable bundles. The outer layer, which supplies the abrasion resistance, is manufactured from PEEK monofilaments and Nomex? with an oil and water repellent treatment. The inner layer is composed of nickel-plated copper (Cu/Ni), which provides EMI insulation. The outer layer construction with a 100% covering ratio provides excellent cutthrough and abrasion resistance.
ROUNDIT® NP EMI is available with an internal layer of PTFE tape allowing wire harnesses to be protected from the inner metal layer.
The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.
ROUNDIT® NP EMI has many applications in the aeronautical and military industries.
Product Highlights
• Operating temperature from -60ºC to +200ºC (-76ºF to +392ºF)
• High performance of EMI Shielding
• Peak temperature +260ºC (+500ºF)
• ABS 2418
• ABD 031 & FAR Part 25 § 853
• Halogen-free
• Tracer indicating the maximum operating diameter
• Oil and water repellent
• Ideal for reworking components without disconnecting them
• Salt Spray Resistant (500 hours)
• RoHS Compliant
Product Specifications
Commercial Part Number |
Max. Wire Harness Size mm (in) |
Recommended Application Range mm |
Max. Weight (w/ PTFE layer) g/m |
Standard Packaging |
|
Min Ø |
Max Ø |
||||
ROUNDIT NP EMI 5-5/9 |
5 (3/16”) |
1 |
5 |
72 |
TBC |
ROUNDIT NP EMI 8-5/9 |
8 (5/16”) |
5 |
8 |
85 |
TBC |
ROUNDIT NP EMI 13-5/9 |
13 (1/2”) |
8 |
13 |
105 |
TBC |
ROUNDIT NP EMI 16-5/9 |
16 (5/8’’) |
13 |
16 |
115 |
TBC |
ROUNDIT NP EMI 19-5/9 |
19 (3/4’’) |
16 |
19 |
130 |
TBC |
ROUNDIT NP EMI 25-5/9 |
25 (1’’) |
19 |
25 |
155 |
TBC |
ROUNDIT NP EMI 32-5/9 |
32 (1 1/4’’) |
25 |
32 |
190 |
TBC |
ROUNDIT NP EMI 38-5/9 |
38 (1 1/2’’) |
32 |
38 |
210 |
TBC |
ROUNDIT NP EMI 45-5/9 |
45 (1 3/4’’) |
38 |
45 |
240 |
TBC |
FMC-RNDNPEMI-005-17 | ROUNDIT NP EMI 5-5/9 | 5673000572S | ABS2418-A-05-Y-5 |
FMC-RNDNPEMI-008-17 | ROUNDIT NP EMI 8-5/9 | 5673000872S | ABS2418-A-08-Y-5 |
FMC-RNDNPEMI-013-17 | ROUNDIT NP EMI 13-5/9 | 5673001372S | ABS2418-A-13-Y-5 |
FMC-RNDNPEMI-016-17 | ROUNDIT NP EMI 16-5/9 | 5673001672S | ABS2418-A-16-Y-5 |
FMC-RNDNPEMI-019-17 | ROUNDIT NP EMI 19-5/9 | 5673001972S | ABS2418-A-19-Y-5 |
FMC-RNDNPEMI-025-17 | ROUNDIT NP EMI 25-5/9 | 5673002572S | ABS2418-A-25-Y-5 |
FMC-RNDNPEMI-032-17 | ROUNDIT NP EMI 32-5/9 | 5673003272S | ABS2418-A-32-Y-5 |
FMC-RNDNPEMI-038-17 | ROUNDIT NP EMI 38-5/9 | 5673003872S | ABS2418-A-38-Y-5 |
- Short Product Description:
- Roundit NP EMI is made from PEEK monofilaments and Nomex and Resistance to electrical arcs. The inner layer is composed of (Cu/Ni). .
