Roundit® EMI C4 XWS B is a wrap-around sleeving designed for EMI shielding of wire and cable bundles. Roundit® EMI C4 XWS B is manufactured from PPS monofilaments and nickel plated copper C4 supplied with an internal layer of PTFE tape thus allowing wire harnesses to be protected from the metal.
The self-wrapping feature of Roundit® EMI C4 XWS B allows for quick and easy installation and removal of the product for assembly and maintenance.
The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.
As an additional benefit, Roundit® EMI C4 XWS B enables users to stock a limited range of sizes to cover a wide range of cable and wire diameters.
Thanks to its unique geometry and metal insertion, Roundit® EMI C4 XWS B is easy to clamp with existing solutions
Roundit® EMI C4 XWS B has many applications in the aeronautical, space and military industries.
Product Highlights
• High Performance EMI Shielding Ro max = 5 mΩ Lt = 2 nH
• Operating temperature from -65ºC to +200ºC (-85ºF to +392ºF)
• ASD EN 4674-003
• Supplied with an internal layer of PTFE tape
• Halogen-free
• Self-wrapping design
• FAR Part 25 § 853
• Stable construction
• Ideal for reworking components without disconnecting them
• Tracer indicating the maximum operating diameter
• RoHS Compliant

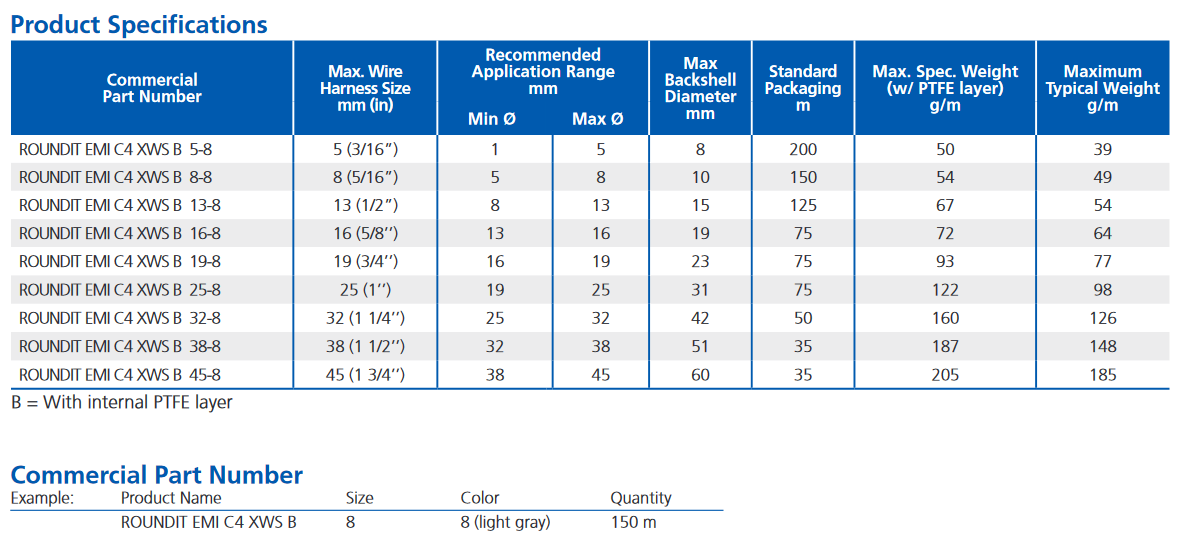

FMC-RNDC4WSB-005-13 | ROUNDIT EMI C4 XWS B 5-8 | 5624500508S | EN4674-003-05 P |
FMC-RNDC4WSB-008-13 | ROUNDIT EMI C4 XWS B 8-8 | 5624500808S | EN4674-003-08 P |
FMC-RNDC4WSB-013-13 | ROUNDIT EMI C4 XWS B 13-8 | 5624501308S | EN4674-003-13 P |
FMC-RNDC4XWS-016-13 | ROUNDIT EMI C4 XWS B 16-8 | 5624501608S | EN4674-003-16 P |
FMC-RNDC4XWS-019-13 | ROUNDIT EMI C4 XWS B 19-8 | 5624501908S | EN4674-003-19 P |
FMC-RNDC4XWS-025-13 | ROUNDIT EMI C4 XWS B 25-8 | 5624502508S | EN4674-003-25 P |
FMC-RNDC4XWS-032-13 | ROUNDIT EMI C4 XWS B 32-8 | 5624503208S | EN4674-003-32 P |
FMC-RNDC4XWS-038-13 | ROUNDIT EMI C4 XWS B 38-8 | 5624503808S | EN4674-003-38 P |
FMC-RNDC4XWS-045-13 | ROUNDIT EMI C4 XWS B 45-8 | 5624504508S | EN4674-003-45 P |
- Short Product Description:
- ROUNDIT EMI C4 XWS B Operating Temperature is -65°C to +200°C. Made to ASD EN 4674-003. High Performance EMI Shielding.
