TwistWrap 2403 Non-Tracer | Self-wrapping Design | Allows for Breakouts

TwistWrap™ 2403 Non-Tracer is a self-wrapping sleeve designed to enable fast and easy wire harness bundling. Woven of both monofilament and multi-filament polyester yarns the product is both flexible and lightweight. The polyester construction eliminates problem associated with trapped heat and humidity and also eliminates operator skin irritation during assembly. The combination of materials also enables the product to provide a level of abrasion protection for the wire bundle.

TwistWrap 2403 maintains a circular profile when flexed and its unique design easily allows for breakouts and installation over completed assemblies.

Product Highlights

• Operating temperature up to +150°C (+302°F)
• Light to moderate abrasion protection
• Low profile and easy to install cable bundling
• Superior adhesion to low surface energy plastics (such as HDPE, PP) and excellent on PA and metals
• Self-wrapping design allows for break-outs
• Lightweight & flexible

Typical Applications

• Instrument panel harnesses
• Engine compartment harnesses
• Other body wiring harnesses
• Tube, hose, and cable assemblies

Availability

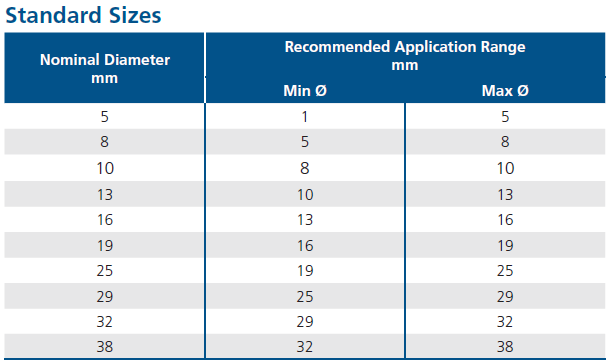

• Standard sizes are listed here. Additional sizes could be available upon request.
• Available in spools
• Standard color is black.
