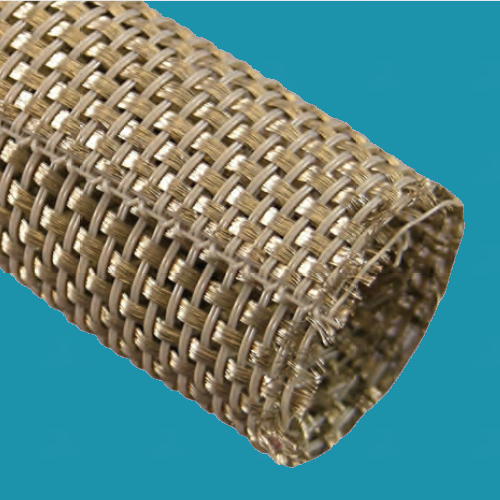

Roundit® V0 EM CU/SN is a wrap-around sleeving designed for high performance EMI shielding of wire and cable bundles. Roundit® V0 EM CU/SN is manufactured from UL 94 V0 rated PPS monofilaments and nickel plated copper wires class 4 according to ASTM B-355.
The self-wrapping feature of Roundit® V0 EM CU/SN allows for quick and easy installation and removal of the product for assembly and maintenance.
The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.
The stable construction guarantees the same level of EMI shielding regardless of the diameter on which it is installed within the recommended application range.
As an additional benefit, Roundit® V0 EM CU/SN enables users to stock a limited range of sizes to cover a wide range of cable and wire diameters.
Roundit® V0 EM CU/SN has many applications in the railway, marine, electronics industries and military industries.
Product Highlights
• Operating temperature from -40ºC to +125ºC (-40ºF to +257ºF)
• Good Level of EMI Shielding: R0 max = 6 mΩ and Lt = 1.2 nH/m
• UL 94 V0 Raw material
• FAR Part 25.853
• Zero Halogen
• EN 45545-2
• Cu/Sn metal (EN13602)
• Ideal for reworking components without disconnecting them
• RoHS Compliant
• Available Sizes 8 to 45 mm (5/16" to 1-3/4")
Product Specifications
|

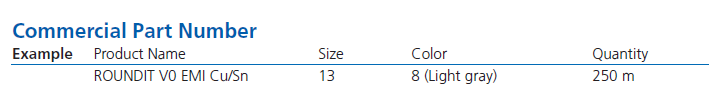

Commercial Part Number |
Nominal Size* (mm) |
Recommended Application Range mm (in) |
Sleeve Cross Section (mm²) |
Maximum Mass g/m (lb/ft) |
Standard Packaging m (ft) |
|
|
Min Ø |
Max Ø |
|||||
|
ROUNDIT V0 EMI Cu/Sn 8 |
8 |
5 (3/16”) |
8 (5/16”) |
3.5 |
41 (0,028) |
250 (820’) |
|
ROUNDIT V0 EMI Cu/Sn 13 |
13 |
8 (5/16”) |
13 (1/2”) |
4.8 |
55 (0,037) |
175 (574’) |
|
ROUNDIT V0 EMI Cu/Sn 19 |
19 |
13 (1/2”) |
19 (3/4”) |
5.9 |
67 (0,045) |
125 (410’) |
|
ROUNDIT V0 EMI Cu/Sn 25 |
25 |
19 (3/4”) |
25 (1”) |
6.9 |
80 (0,054) |
75 (246’) |
|
ROUNDIT V0 EMI Cu/Sn 32 |
32 |
25 (1”) |
32 (1-1/4”) |
8.9 |
105 (0,071) |
50 (164’) |
|
ROUNDIT V0 EMI Cu/Sn 38 |
38 |
32 (1-1/4”) |
38 (1-1/2”) |
10.6 |
120 (0,081) |
35 (114’) |
|
ROUNDIT V0 EMI Cu/Sn 45** |
45 |
38 (1-1/2”) |
45 (1-3/4”) |
11.9 |
140 (0,094) |
35 (114’) |
*Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).
** Size 45 has 80 degrees of overlap (average value).
| FMC-RNV0EMIC-008-08 | Roundit V0 EMI CuSn 8-8 |
5667200808S 5667600808S |
| FMC-RNV0EMIC-013-08 | Roundit V0 EMI CuSn 13-8 |
5667201308S 5667601308S |
| FMC-RNV0EMIC-019-08 | Roundit V0 EMI CuSn 19-8 |
5667201908S 5667601908S |
| FMC-RNV0EMIC-025-08 | Roundit V0 EMI CuSn 25-8 |
5667202508S 5667602508S |
| FMC-RNV0EMIC-032-08 | Roundit V0 EMI CuSn 32-8 |
5667203208S 5667603208S |
| FMC-RNV0EMIC-038-08 | Roundit V0 EMI CuSn 38-8 |
5667203808S 5667603808S |
| FMC-RNV0EMIC-045-08 | Roundit V0 EMI CuSn 45-8 |
5667204508S 5667604508S |
- Short Product Description:
- Roundit V0 EM CU/SN is manufactured from UL 94 V0 rated PPS monofilaments and nickel plated copper wires class 4 according to ASTM B-355.
- Datasheet Link:
- /content/data_sheets/Roundit_V0_EMI_CuSn.pdf
