FyreJacket® BP-A sleeve is a highly expandable fiberglass structure with engineered silicone coating, providing superior flame protection and dielectric resistance. Product is specifically designed as anti-propagation protection in case of Thermal Runaway to ensure a good insulation & performance between the
Battery Management Systems & the battery pack.
The inherent elasticity of FyreJacket BP-A delivers a sleeve solution with easy installation and superior fit on complex busbar geometries. FyreJacket BP-A’s ability to contour along with the busbar geometry minimizes space required for Thermal Runaway protection. Space savings is very valuable within battery pack.
FyreJacket BP-A provides the highest level of protection from Thermal Runaway along with repeatable, reliable and fast installation times. This superior product gives the end user confidence the best solution is in use.
Product Highlights
• Repeatable, fast and easy installation
• Highly expandable and flexible
• Superior Flame Protection during exposure to +1000°C x >30 minutes
• Dielectric protection > 2.0kV Post Flame
• Non-flammable
Typical Applications
• Protects busbars from Thermal Runaway
• Busbars located within EV battery pack
• Busbar outside EV battery pack
• Rigid busbars
• Flexible busbars
Availability

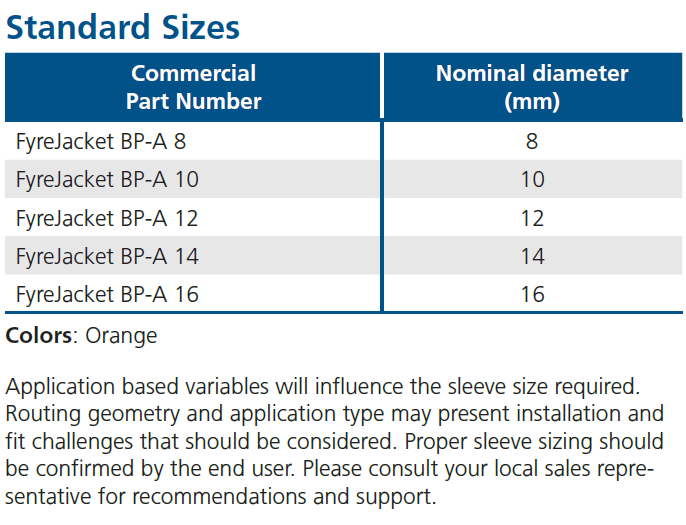

• Product is available in multiple sizes designed to protect many industry-standard busbars.
• Additional sizes could be available upon request.
• Available in custom cut lengths. Maximum cut length of 2 meters standard.
• Standard color is Orange. Additional colors may be available.
- Short Product Description:
- FyreJacket® BP-A sleeve is a highly expandable fiberglass structure with engineered silicone coating, providing superior flame protection and dielectric resistance.
- Datasheet Link:
- /content/data_sheets/FyreJacket_BPA.pdf
