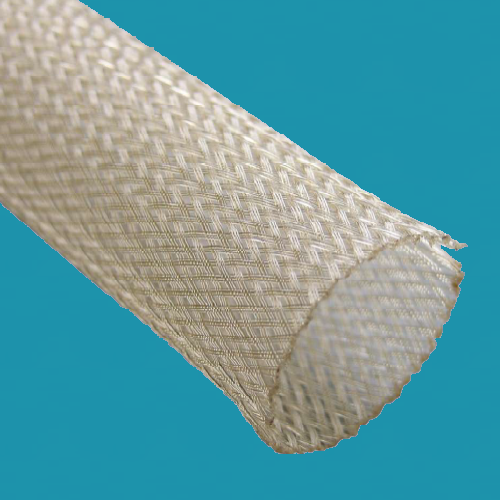

Expando® PPS (polyphenylene sulfide) is an expandable sleeve designed for mechanical protection in high temperatures. Rated to +200ºC (+392ºC), Expando® PPS meets VW-1 flame test requirements.
The inherent properties of PPS give Expando® PPS low levels of flammability, toxicity, smoke generation and hard vacuum off-gassing. Because of its high use temperature, Expando® PPS resists damage from high-temperature air guns used with heat-shrinkable elements such as strain reliefs, terminations and identification sleeves.
Expando® PPS is used in the aerospace industry for its outstanding properties in extreme environments. This product should be considered for aircraft, space, military, marine, and hostile-environment applications.
Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-braid construction of Expando products enables each size to expand to fit several application shapes and diameters. This open-textile construction also makes them highly flexible and resistant to trapping water, heat and humidity.
Product Highlights
• Operating temperature from -70ºC to +200ºC (-94ºF to +392ºF)
• Meets VW-1 requirements
• Low toxicity, smoke generation and offgassing
• Does not trap heat or humidity
• RoHS Compliant
• Expandable design accommodates a variety of sizes
• Air Force TO 1-1A-14, Army TM 1-1500-323-24-1, NAVAIR 01-1A-505-1
Product Specifications
Longitudinal shrinkage should be taken into account when utilizing expansion properties of the sleeve
|
Commercial |
Recommended Application Range mm (in) |
Maximum Weight |
Standard Packaging |
|
|
Part Number |
Min Ø |
Max Ø |
g/m (lb/ft) |
m (ft) |
|
Expando PPS 3-X |
2 (1/16”) |
6 (1/4”) |
3.44 (0.0023) |
610 (2,000’) |
|
Expando PPS 6-X |
3 (1/8”) |
13 (1/2”) |
5.89 (0.0040) |
305 (1,000’) |
|
Expando PPS 13-X |
7 (9/32”) |
19 (3/4”) |
12.11 (0.0081) |
152 (500’) |
|
Expando PPS 19-X |
13 (1/2”) |
32 (1-1/4”) |
14.24 (0.0096) |
152 (500’) |
|
Expando PPS 32-X |
25 (1”) |
45 (1-3/4”) |
26.34 (0.0177) |
76 (250’) |
|
Expando PPS 45-X |
32 (1-1/4”) |
64 (2-1/2”) |
28.72 (0.0193) |
76 (250’) |
X = Color Code: 0 = Black 9 = Natural
| FMC-EXPPPSzz-003-00 | Expando PPS 3-0 | 5046300303S | 5970015979409 |
| FMC-EXPPPSzz-006-00 | Expando PPS 6-0 | 5046300603S | 5970015976702 |
| FMC-EXPPPSzz-013-00 | Expando PPS 13-0 | 5046301303S | 5970015979307 |
| FMC-EXPPPSzz-019-00 | Expando PPS 19-0 | 5046301903S | 5970015979413 |
| FMC-EXPPPSzz-032-00 | Expando PPS 32-0 | 5046303203S | 5970015976770 |
| FMC-EXPPPSzz-045-00 | Expando PPS 45-0 | 5046304503S | 5970015979262 |
| FMC-EXPPPSzz-003-11 |
Expando PPS 3-9 5046300301S |
BMS13-52-3-012-N | 5970015976778 |
| FMC-EXPPPSzz-006-11 |
Expando PPS 6-9 5046300601S |
BMS13-52-3-025-N | 5970015979288 |
| FMC-EXPPPSzz-013-11 |
Expando PPS 13-9 5046301301S |
BMS13-52-3-050-N | 5970015979298 |
| FMC-EXPPPSzz-019-11 |
Expando PPS 19-9 5046301901S |
BMS13-52-3-075-N | 5970015976788 |
| FMC-EXPPPSzz-032-11 |
Expando PPS 32-9 5046303201S |
BMS13-52-3-125-N | 5970015976757 |
| FMC-EXPPPSzz-045-11 |
Expando PPS 45-9 5046304501S |
BMS13-52-3-175-N | 5970015979281 |
- Short Product Description:
- Expando PPS (polyphenylene sulfide) is an expandable sleeve designed for mechanical protection in high temperatures. Rated to +200C (+392C), Expando PPS meets VW-1 flame test requirements.
- Datasheet Link:
- /content/data_sheets/Expando_PPS.pdf
