FyreJacket® 2611 sleeve is a highly expandable fiberglass structure with engineered silicone coating, providing superior flame protection and dielectric resistance. Product is specifically designed as anti-propagation protection in case of Thermal Runaway to ensure a good insulation & performance between the Battery Management Systems & the battery pack.
The inherent elasticity of FyreJacket 2611 delivers a sleeve solution with easy installation and superior fit on complex busbar geometries. FyreJacket 2611’s ability to contour along with the busbar geometry minimizes space required or Thermal Runaway protection. Space savings is very valuable within battery pack.
FyreJacket 2611 provides the highest level of protection from Thermal Runaway along with repeatable, reliable and fast installation times. This superior product gives the end user confidence the best solution is in use. Also available in black, designated as FyreJacket® 2612.
Product Highlights
• Thermal Runaway - (SP Internal Test Method) - Resists 30 min x 1000°C Flame
• Flammability - (SAE J369) - Self-extinguishing
• Dielectric protection > 2.0kV Post Flame
• Superior Flame Protection during exposure to +1000°C x >30 minutes
• Wall Thickness ≈ 2.0mm
• Fluid resistant to hydraulic fluids and lubricating oil
• Standard color is Red Iron Oxide - Also available in black, designated as FyreJacket® 2612
Typical Applications
• Cooling Lines
• Thermal Runaway Protection
• Busbars
Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support. Other sizes maybe available.
|

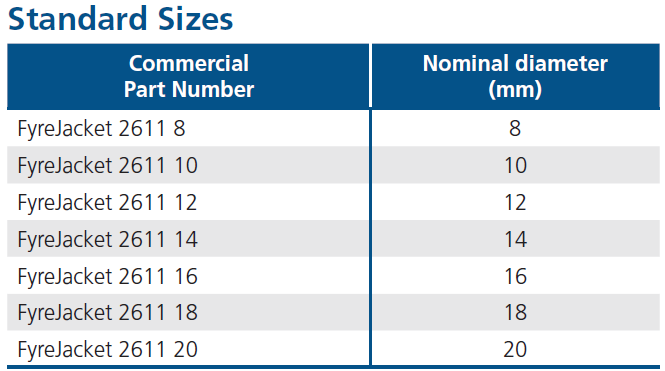

Commercial Part Number |
Recommended Application Range |
Nominal diameter |
|
|
Min Ø mm (in) |
Max Ø mm (in) |
||
|
FyreJacket 2611 8 |
8.6 (0.34) |
10.3 (0.41) |
5/16" (8) |
|
FyreJacket 2611 10 |
14.7 (0.58) |
16.6 (0.66) |
3/8" (10) |
|
FyreJacket 2611 12 |
18.0 (0.71) |
20.6 (0.81) |
3/4" (12) |
|
FyreJacket 2611 14 |
21.3 (0.84) |
23.7 (0.94) |
7/8" (14) |
|
FyreJacket 2611 16 |
24.3 (0.96) |
26.9 (1.06) |
1" (16) |
|
FyreJacket 2611 18 |
27.4 (1.08) |
30.1 (1.19) |
18 |
|
FyreJacket 2611 20 |
30.7 (1.21) |
33.3 (1.31) |
20 |
| FMC-FYRE2601-008-12 | FyreJacket Aerospace 8-12 | 4001601110S |
AS1072-04-SIL-FG |
| FMC-FYREAERO-005-12 | FyreJacket Aerospace 5-12 | 4001000810S |
Thermotubix Aerospace 8-12 AS1072-05-SIL-FG DTR 00 17 16 8A BA |
| FMC-FYREAERO-006-12 | FyreJacket Aerospace 6-12 | 4001001010S |
Thermotubix Aerospace 9.5-12 AS1072-06-SIL-FG DTR 00 00 19 23 11 |
| FMC-FYREAERO-007-12 | FyreJacket Aerospace 7-12 | 4001001110S |
AS1072-07-SIL-FG |
| FMC-FYREAERO-008-12 | FyreJacket Aerospace 8-12 | 4001001310S |
Thermotubix Aerospace 12.7-12 AS1072-08-SIL-FG DTR 00 171 68 ABC
|
| FMC-FYREAERO-009-12 | FyreJacket Aerospace 9-12 | 4001001410S |
AS1072-09-SIL-FG |
| FMC-FYREAERO-010-12 | FyreJacket Aerospace 10-12 | 4001001610S |
Thermotubix 16-12 AS1072-10-SIL-FG |
| FMC-FYREAERO-011-12 | FyreJacket Aerospace 11-12 | 4001001810S |
AS1072-11-SIL-FG |
| FMC-FYREAERO-012-12 | FyreJacket Aerospace 12-12 | 4001001910S |
Thermotubix Aerospace 19-12 AS1072-12-SIL-FG DTR 00 00 18 20 01 |
| FMC-FYREAERO-013-12 | FyreJacket Aerospace 13-12 | 4001002110S |
AS1072-13-SIL-FG |
| FMC-FYREAERO-014-12 | FyreJacket Aerospace 14-12 | 4001002210S |
Thermotubix Aerospace 22-12 AS1072-14-SIL-FG DTR 00 09 47 98 79 |
| FMC-FYREAERO-015-12 | FyreJacket Aerospace 15-12 | 4001002410S |
AS1072-15-SIL-FG |
| FMC-FYREAERO-016-12 | FyreJacket Aerospace 16-12 | 4001002510S |
Thermotubix Aerospace 25-12 AS1072-16-SIL-FG DTR 00 00 19 27 46 |
| FMC-FYREAERO-018-12 | FyreJacket Aerospace 18-12 | 4001002910S |
AS1072-18-SIL-FG |
| FMC-FYREAERO-020-12 | FyreJacket Aerospace 20-12 | 4001003210S |
Thermotubix Aerospace 32-12 AS1072-20-SIL-FG DTR 00 00 19 24 93 |
| FMC-FYREAERO-022-12 | FyreJacket Aerospace 22-12 | 4001003510S |
AS1072-22-SIL-FG |
| FMC-FYREAERO-024-12 | FyreJacket Aerospace 24-12 | 4001003810S |
Thermotubix Aerospace 38-12 AS1072-24-SIL-FG DTR 00 00 19 23 23 |
| FMC-FYREAERO-026-12 | FyreJacket Aerospace 26-12 | 4001004110S |
AS1072-26-SIL-FG |
| FMC-FYREAERO-028-12 | FyreJacket Aerospace 28-12 | 4001004510S |
Thermotubix Aerospace 45-0 AS1072-28-SIL-FG |
| FMC-FYREAERO-030-12 | FyreJacket Aerospace 30-12 | 4001004810S |
AS1072-30-SIL-FG |
| FMC-FYREAERO-032-12 | FyreJacket Aerospace 32-12 | 4001005110S |
Thermotubix Aerospace 51-12 AS1072-32-SIL-FG |
| FMC-FYREAERO-034-12 | FyreJacket Aerospace 34-12 | 4001005410S |
AS1072-34-SIL-FG |
| FMC-FYREAERO-036-12 | FyreJacket Aerospace 36-12 | 4001005710S |
Thermotubix Aerospace 57-12 AS1072-36-SIL-FG |
| FMC-FYREAERO-038-12 | FyreJacket Aerospace 38-12 | 4001006010S |
AS1072-38-SIL-FG |
| FMC-FYREAERO-040-12 | FyreJacket Aerospace 40-12 | 4001006410S |
Thermotubix Aerospace 64-12 AS1072-40-SIL-FG |
| FMC-FYREAERO-042-12 | FyreJacket Aerospace 42-12 | 4001006710S |
AS1072-42-SIL-FG |
| FMC-FYREAERO-044-12 | FyreJacket Aerospace 44-12 | 4001007010S |
AS1072-44-SIL-FG |
| FMC-FYREAERO-046-12 | FyreJacket Aerospace 46-12 | 4001007310S |
AS1072-46-SIL-FG |
| FMC-FYREAERO-048-12 | FyreJacket Aerospace 48-12 |
DTR 00 17 16 8A BP AS1072-48-SIL-FG Thermotubix Aerospace 76-12 |
|
| FMC-FYREAERO-050-12 | FyreJacket Aerospace 50-12 | 4001007910S |
|
| FMC-FYREAERO-052-12 | FyreJacket Aerospace 52-12 | 4001008310S |
|
| FMC-FYREAERO-056-12 | FyreJacket Aerospace 56-12 | 4001008910S |
AS1072-56-SIL-FG Thermotubix Aerospace 89-12 |
| FMC-FYREAERO-060-12 | FyreJacket Aerospace 60-12 | 4001009510S |
|
| FMC-FYREAERO-064-12 | yreJacket Aerospace 64-12 | 4001010210S |
Thermotubix Aerospace 101-12 |
- Short Product Description:
- Protects components in extreme temperatures. Silicone rubber coating has excellent shedding properties; meets AS 1072.
