FlatWrap® 2535 is an advanced textile structure engineered to facilitate the installation of round wire bundles into tight or confined spaces. Woven with lightweight thermoplastic yarns, the product maintains wire bundles in a flat, low profile. By forcing wires to lay in a flat position, the bundle size is reduced, allowing routing through confined areas such as under carpet, headliner, under seat and door harness applications. The combination of flexibility, strength and low bulk make FlatWrap 2535 an obvious choice for engineers requiring more design freedom than allowed by typical plastic channels.
Woven with an integral closure mechanism, FlatWrap 2535 opens to enable easy installation yet closes securely to maintain integrity of the wire bundle. The closure is designed to allow easy access for inspection, rework or replacement of components. The product’s wrap construction also permits
installation onto portions of already installed wire harnesses.
Product Highlights
• Operating temperature up to +125°C (+257°F) -40°C (-40°F)
• Maintains wires in flat configuration
• Excellent abrasion resistance
• Integrated mechanical closure
• Removable for maintenance
• Provides directional flexibility
• Lightweight & Low Profile
Availability

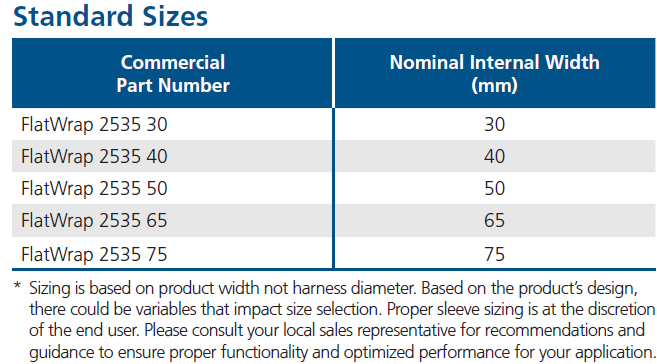

• Standard sizes are 30MM, 40MM, 50MM, 65MM, 75MM
• Made in custom cut lengths in 5mm increments.
• This product is customizable. Please contact us to learn more.
• Standard color is black. Additional colors could be available.
- :
