ReflexWrap™ 1463 is a self-wrapping, reflective sleeve designed to provide thermal protection for both radiant and convective heat applications. Composed of a woven fiberglass base fabric and a lamination of aluminum foil, the product can withstand convective heat soaks up to +200°C (+392°F) and simultaneously protect critical components from radiant or reflected heat.
The self-wrapping design of ReflexWrap 1463 allows for quick and easy installation with a self-sealing adhesive reinforcement for permanent closure. The adhesive strip acts as a barrier to dirt and fluids while maintaining the full integrity of the finished aluminized sleeve.
Product Highlights
• Operating temperature up to +200°C (+392°F)
• Excellent radiant heat protection
• Self-wrapping design allows for break-outs
• Lightweight, flexible & easy to install
• Fluid and chemical resistant
Typical Applications
• Engine compartment applications
• Wire harnesses
• Brake & fuel lines
• Tube, hose & cable assemblies
Availability

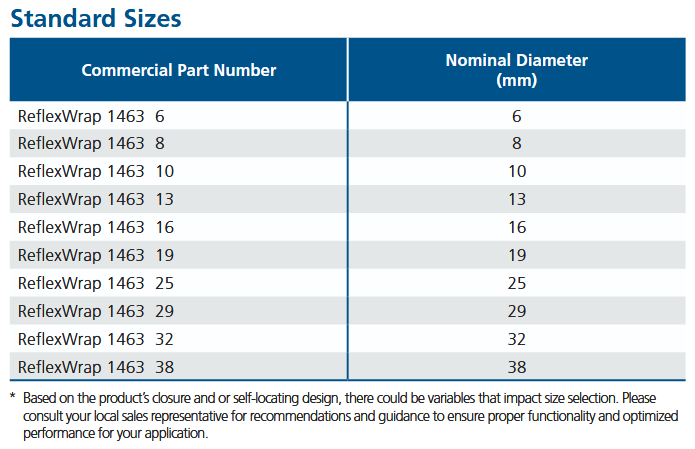

• Standard sizes are listed here. Additional sizes could be available upon request
• Available in custom cut lengths. Recommended cut lengths are in 5mm increments.
- Short Product Description:
- ReflexWrap™ 1463 provides thermal protection for both radiant and convective heat
- Datasheet Link:
- /content/data_sheets/ReflexWrap_1463.pdf
